The Fifth Reach
Oakes Canal form Pawlings's Dam to Flat Rock Dam
To view an image, click on the thumbnail. Use your browser's back button to return. Please note the file sizes.


Large Maps
Map #
Description
File Sizes

  Plan 5-11 5-11 Canal at Lumberville (Port Providence) 187k
Plan 5-101 5-101 River & canal opposite Phoenixville (Summerfeldt Litigation) 159k
Plan & profile 5-102 5-102 Summerfeldt property 195k
Cross-section of Schuylkill 5-103 5-103 Summerfeldt litigation 179k
Plan & sections 5-106 5-106 Drainage ditch at Lock 61 172k

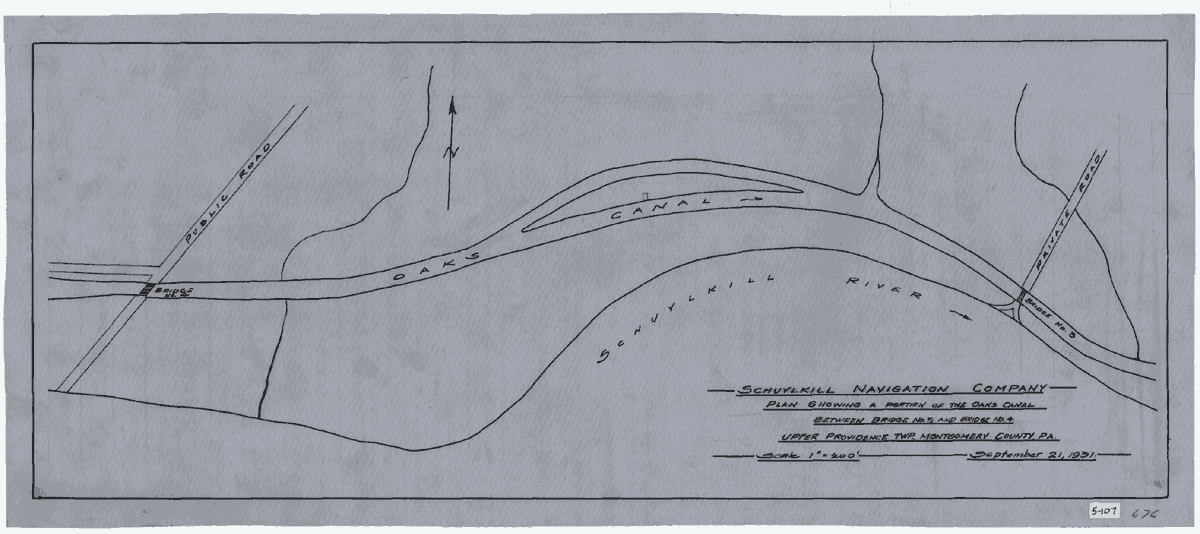

Plan 5-107 5-107 Portion of Oaks canal 115k
Plan  5-109 (blueprint) 5-109 Property along Oaks canal (Umstad farm) 161k
Plan 5-110 5-110 Launching sites at Black Rock 187k
Map 5-120 5-120 Canals at Phoenixville area (parts of Vincent, Oaks and branch canals) 161k

Small Maps Map # Description File Sizes
  Plan of encroachments 5-S1 5-S1 Lock 62 (Pawlings Dam) 64k
Plan 5-S11 5-S11 Phoenixville Branch Canal St French Creek 88k
Plan 5-S101 5-S101 Pipe at Mont Clare Road Bridge 168k
Plan 5-S102 5-S102 Oaks Canal at Lumberville 118k
Plan 5-S104 5-S104 Right-of-way at Port Providence 102k
Plan 5-S106 5-S106 Lower portion of Oaks Canal 128k
Section & elevation 5-S109 5-S109 Proposed bridge over canal at Phoenixville 89k
Plan 5-S111 5-S111 Canals at Phoenixville 94k
Plan 5-S112 (blueprint) 5-S112 Lockhouse property at Lock 61 (reverse image) 61k
Plan 5-S113   5-S113 Oaks Canal  145k
